BATL biometric rugged handheld computer high quality for sale
1. BATL rugged handheld computer has to go through the following production stages: CAD software design, high-resolution prototype, precision casting, molding, and reproductions.
2. It has good elasticity. Its comfort layer and the support layer are extremely springy and elastic due to their molecular structure.
3. The dangerous chemicals found in this product is generally considered too small to pose a potential risk to people health.
Product introduction

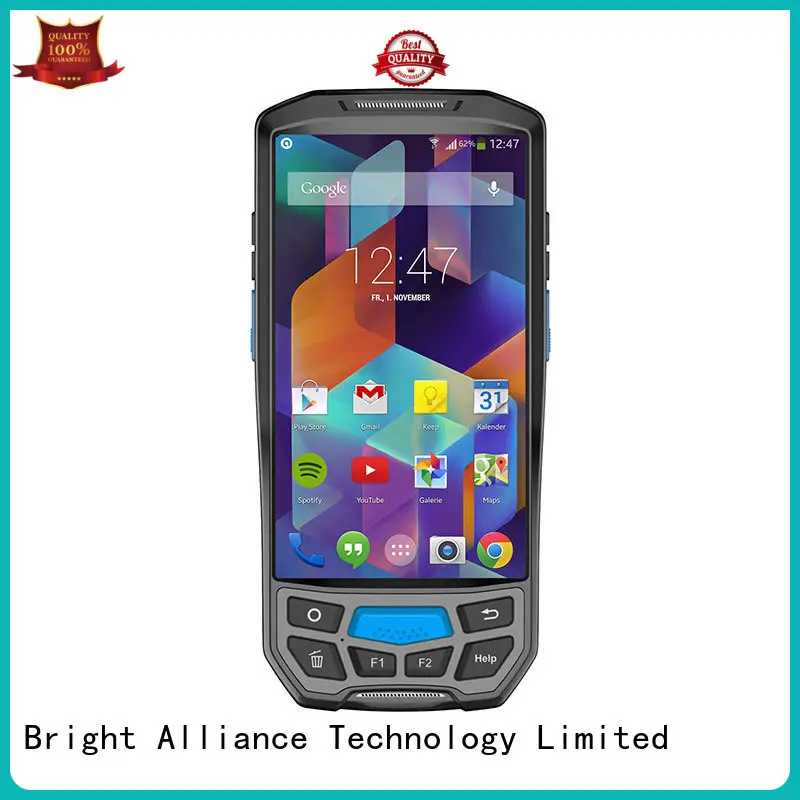

BH98 it is a 5.0 inch Android mobile handheld PDA POS terminal with option modules thermal printer, 1D/2D barcode scanner,NFC reader,built in UHF around 1.5m ,125k/134.2k LF and the model also can be with Biometric fingerprint for bank register and security filed. we use Corning Gorilla tempered glass touch panel and the model with Quad core CPU,Android 7.0 o.s,with dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with 8.0M rear one and 4800 mAh battery,,there are micro USB,POGO PIN etc ports,among them.the USB port it can support OTG and transfer into Ethernet port
And we also design handstrap to protection the device slip out of the hand,cradle for better charging and bag for hands free,our customers they mainly use the devices in retail, warehouse management,logistic,Bank,security inspection and livestock management etc filed
The main features
◪ The main features
◪ 5.0 inch IPS 1280*720 display
◪ Corning gorilla Tempered glass for better protection
◪ Quad core Android 7.0 o.s 2GB RAM and 16GB ROM
◪ Dual band WIFI,Support GPS navigation
◪ rear 8.0M camera
◪ 4800mAh Battery
◪ Thermal printer 58mm
◪ Honeywell N6603 1D/2D
◪ Biometric fingerprint scanner
◪ UHF/125k/134.2 LF RFID (FDX-B/HDX)
Product details
Product details
5.0 inch Android 7.0 handheld PDA POS terminal with Barcode scanner,thermal printer BH98 | ||
| Physical Parameters | Weight | 389g,including battery |
| Size | 172mm(L) X 80mm(W) X 27mm(D) | |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB | |
| OS | Android 7.0 | |
| Display | 5.0 inch Corning Gorilla glass,IPS TFT-LCD, 1280x720 | |
| Touch Screen | 5 point capacitive touch screen backlight | |
| WWAN | TDD-LTE (B1/B2/B3/B5/B7/B8/B20),FDD-LTE (B40),WCDMA B1,B2,B5,B8,GSM Quad band | |
| Camera | 8.0MP Camera, Auto-focus with LED flash | |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |
| Bluzetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m | |
| GPS | GPS(embedded A-GPS), accuracy of 5m | |
| Battery | Rechargeable li-ion polymer, 3.7V, 4800mAh | |
Optional Modules | ||
| Thermal printer | Effective print width | 58mm |
| Print method | Thermal line printing | |
| Print speed | Up to 90mm/sec | |
| Resolution | 8 dots/mm(203dpi) | |
| Print font | 12x24/ 24x24 | |
| 1D Barcode (Optional) | Module | HONEYWELL N4313, Minde966 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar, EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect. | |
| 2D Barcode (Optional) | Module | HONEYWELL N6603, HONEYWELL N3680, NewLand 3096 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |
| Fingerprint (Optional) | Sensor types | TCS2SS, Capacitive, area sensor 508 DPI or FBI certification fingerprint |
| Performance | FRR<0.008%, FAR<0.005% | |
| Capacity | 1000 | |
| RFID (Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| HF/NFC | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing | |
| PSAM | Support two PSAM card | |
| Low frequency | 125KHz/134.2KHz(FDX-B/HDX), ISO 11784&11785, reading range up to 2-10cm | |
Development Environment | ||
| SDK | HHW Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
Accessories | ||
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery;1xUSB data cable |
| Optional | Cradle docking station and bag | |
Other features | ||
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) | |
| Relative humidity | 5%RH to 95%RH(non-condensing) | |
| ESD | ±15kv air discharge, ±8kv direct discharge | |
Application scene
Security check
Warehouse management
logistics industry
Industry
Product Certification
BH98
BH98
