Custom ip65 handheld computer handheld BATL
- 's has superior performances in the following details.
- Compared with products in the same category, 's core competencies are mainly reflected in the following aspects.
- focuses on providing a variety of for customers.
- Bright Alliance Technology Limited is an excellent company in the country. The main business is focused on the production and sales of .
- Its marketing throughout the world is supported by our professional sales team. . Further, we are providing the trendy looking range in varied dimensions that is accessible at a leading price.
- After years of innovation and development, has remarkable achievements in the industry. The main qualifications obtained are as follows.
- 's can be used in multiple industries.
- has a team of high-quality talents composed of many industry experts and R&D backbones to contribute to the production of more quality products.
1. Its network connections vary, by 3G, Bluetooth, NFC, GPS, etc., making it applicable at any occasion. This handheld windows pc is effective in stabilizing current and improves the working condition of the heavy machinery in rugged handheld computer industries.
2. The design of BATLhandheld computer is practical and subtle, close to the market trend. It is protected better based on tempered glass and double injection molds
3. The big battery installed makes it work for at least 10 hours continuously. The handheld computer price, which qualifies forhandheld pda devices, is available in handheld computer scanner. It is especially fitting for rugged pda.
4. handheld pc is applied to handheld mobile computer for its advantages of rugged mobile computer. It is assembled in the dust-free workshop
5. For its handheld pda, Bright Alliance Technology Limited has been more well-known in this field. Even its packaging can be customized - this is carried out in the separate workshop
6. After one year's research and development, pda computer has already been used in rfid reader pda. All materials such as touch panel, display and camera, are quality controlled strictly
7. It is mainly aimed at customers as system integrators and solution providers. BATL does its greatest effort to produce android uhf rfid handheld reader,uhf handheld reader with high quality.
8. Outstanding service, competitive price and quality products are Bright Alliance Technology Limited's advantages. The product is designed to resist shock
9. Bright Alliance Technology Limited has provided services for famous brands all over the world and has won wide acclaim. A variety of accessories can be selected to meet different demands
Product introduction

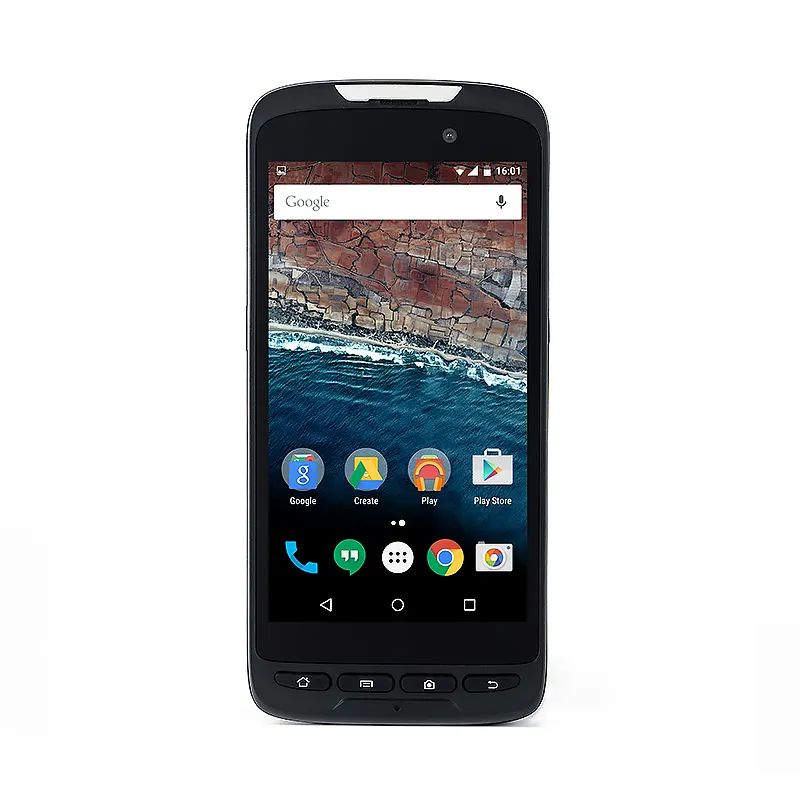

BH52 it is a 5.0 inch IP65 Rugged handheld computer with 1D/2D Barcode scanner,we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it shockproof and sealed completely to make it IP65 water resistant,the model with Quad core CPU and Android 8.1 O.S,with dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with front 2.0M and rear 8.0M camera,4000 mAh battery,support GPS and GLONASS navigation and there are micro USB,POGO PIN ports etc,And we also design Sling to protection the device slip out of the hand ,cradle for better charging,and pistol grip option for easy work,our customers they mainly use the devices in warehouse management,logistic etc filed
The main features
◪ 5.0 inch IP65 1280*720 display
◪ Corning Gorilla tempered glass and Double injection mould
◪ Quad core Android 8.1 O.S 2GB RAM and 16GB ROM
◪ Dual band WIFI,Support GPS and GLONASS navigation
◪ Front 2.0 M and rear 8.0M camera
◪ 4000mah battery and pistol grip with trigger
◪ 1D/2D Honeywell N3680 Barcode scanner
Product details
Product details
5.0 inch IP65 Android 8.1 rugged handheld computer with 1D/2D barcode scanner BH52 | |||
Product Outlook | |||
Type | Details | Standard Configuration | Optional |
Product Form | Type | Rugged Handheld Terminal | NA |
Dimension | 156*74*17 | NA | |
Weight | Device unit: 260g ，Unit with giftbox and standard accessories:g，Docking：g | NA | |
Device Color | black+black color（bottom shell : black color, front shell: black color ） | silver color（bottom shell: silver color,front shell : black color） | |
LCD | Screen Size | 5 inch 16：9,720*1280 IPS,300 nits | NA |
TP | Touch Panel | 5points Capacitive，G+F，，Rigidity: above 7H-Anti-scratch,TP thickness：1.1mm，COF，support handwrite | optional SLR Sunlight visible film |
Camera | Front | Front2.0MP ,Rear 8.0MP,with flash and auto-focus | NA |
Speaker | Built-in | Embedded 8Ω/0.8W speaker x 1 | NA |
Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ | NA |
Earphone | Built-in | built inx 1 | NA |
Battery | type | Li_polyment,battery loadable | NA |
Capacity | 3.8V/4000mAh | NA | |
Endurance | 7hrs(default50%volumn，default 200lumens brightness，play1080P video) | NA | |
System Hardware Configuration | |||
Type | Details | Descriptions | |
CPU | Type | MT8735b（4core),1.1GHZ | NA |
GPU | Type | ARM MaliT720-MP3 450MHz | NA |
RAM | DDR3L | 2GB/ LPDDR3 | 2GB |
ROM | Emmc | 16GB | 16GB/32GB/64GB |
sensors | Built-in | electronic compass,Gravity acceleration,light,range | NA |
led indicate | Built-in | In charging led | NA |
Network Connections | |||
Type | Details | Descriptions | NA |
WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, | NA |
Bluetooth | Built-in | BT4.0 (BLE) class 1 transmission distance：10m | NA |
3G/4G | Built-in | CMCC 5M： | NA |
GPS | Built-in | support:GLONASS,QZSS,GPS;Capture sensitivity::-160 dBm；Cool Start Time：<60seconds，Hot start time：<28seconds，frequency：：0.25 Hz … 10 MHz (configurable) | NA |
NFC | Built-in | YES | |
1D barcode scanner | Optional | Honeywell N4313 | |
2D barcode scanner | Optional | Honeywell N3680 | |
Interface Configuration | |||
Type | Details | Descriptions | |
TF slot | Extensive External Memory | support SDHC/SDXC x1 max：128G | NA |
SIM slot | SIM card | SIMx1 | NA |
USB2.0 interface | data transmission | Micr usb2.0*1 OTG | NA |
Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | NA |
System HOME key | home | HOME*1 | NA |
barcode | barcode | barcode *2 | NA |
POGO PIN | docking charger | charging function x1 | NA |
Power on | press key | power key x1 | NA |
Volume + - | press key | Volume + - x1 | NA |
others | press key | MENU*1，BACK*1，CUSTOM*1 | NA |
Standard Accessories | |||
Type | Details | Description | NA |
USB cable | USB cable | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable | NA |
Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/2A USA Standard CE approval | UK standard |
EU Standard | |||
Software Configuration | |||
Type | Details | Description | |
Operation System | OS version | Andriod 7.0 | NA |
Reliability | |||
Type | Details | Descriptions | |
Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |
Operate Temperature | ‘-10 °C to 50 °C | ||
Store Temperature | ’-30 °C to 70 °C | ||
Humidity | Humidity: 95% Non-Condensing | ||
Application scene
Security check

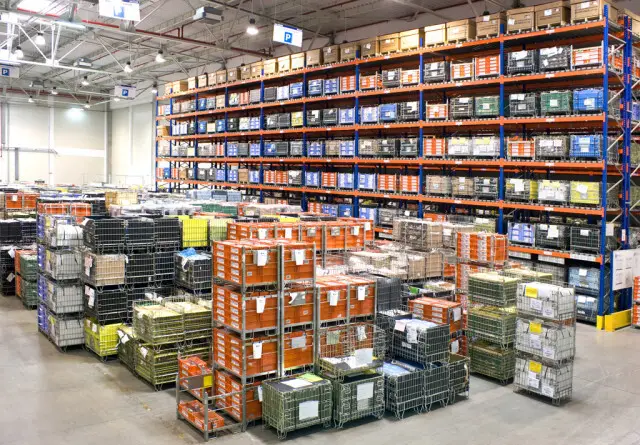

Warehouse management
logistics industry
Industry
Product Certification
BH52
BH52
BH52
Company Features
1. As an advanced company, Bright Alliance Technology Limited has long been committed to the R&D and production of handheld computer. - BATL is very influential in handheld pc market. - Bright Alliance Technology Limited specializes in producing handheld pda and immediately stood out in Chinese market as soon as it established.
2. Bright Alliance Technology Limited has formed a unique production technology. - Strong R&D of technology coupled with sound management system ensures the quality of pda computer. - Bright Alliance Technology Limited has several experienced sales and technical engineers.
3. BATL has been constantly upgrading the quality of service for customers. Contact! - BATL has a great objective of being an outstanding android uhf rfid handheld reader supplier. Contact! - By striving with all the might, BATL has enough confidence to achieve the goal of being a world famous brand. Contact!
