Product introduction

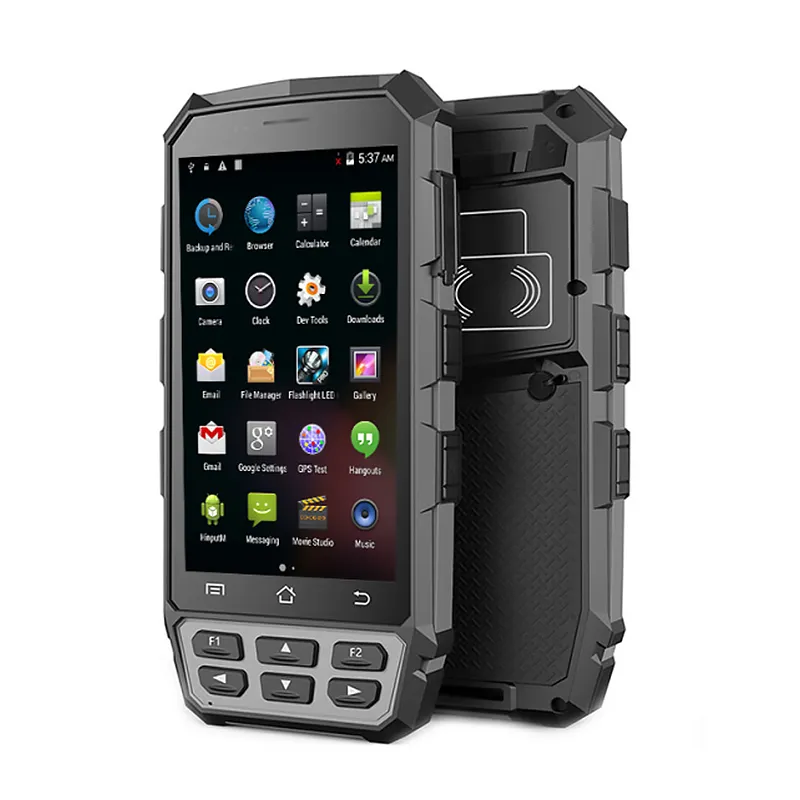

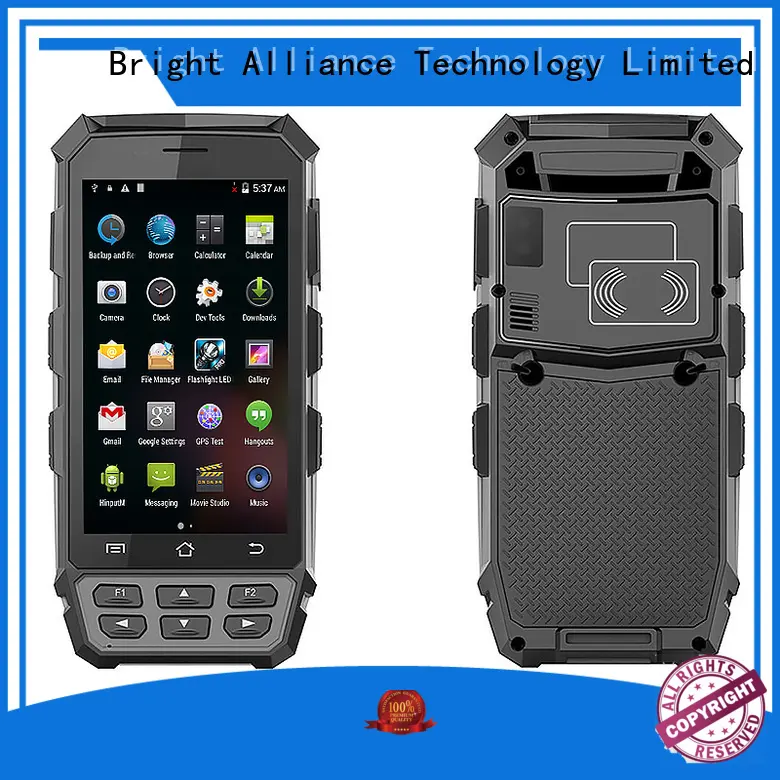

BH95 it is a 5.0 inch IP65 Rugged handheld computer with option modules 1D/2D barcode scanner,NFC reader,built in UHF around 1.5m and external long range UHF RFID with pistol grip around 4m,125k/134.2k LF and the model also can be with Crossmatch Biometric fingerprint for bank register and security filed.
we use tempered glass touch panel and double injection mould housing to make it shockproof and sealed completely to make it IP65 water resistant,and the model with Quad core CPU,Android 7.0 o.s,with dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with 8.0M rear camera one and 4500 mah battery,the most important we can install the customers special modules inside of the device to fulfill special functions,there are D.C,MINI USB,POGO PIN etc ports,among them.
the USB port it can support OTG and transfer into Ethernet port And we also design Sling to protection the device slip out of the hand,cradle for better charging and bag for hands free,our customers they mainly use the devices in warehouse management,logistic,Bank,security inspection and livestock management etc filed.
The main features
◪ 5.0 inch IP65 1280*720 display
◪ Tempered glass and Double injection mould for better protection
◪ Quad core Android 7.0 o.s 2GB RAM and 16GB ROM
◪ Dual band WIFI,Support GPS navigation
◪ rear 8.0M camera
◪ 4500mAh for normal version and 8000 mAh battery with pistol grip version
◪ Honeywell N6603 or Newland 3396 1D/2D Barcode scanner
◪ Crossmatch Biometric fingerprint with FBI certification
◪ Built in UHF RFID or External UHF RFID with pistol grip
◪ 125k/134.2 LF RFID
Product details
Product details
Handheld computer with barcode scanner,UHF RFID,NFC,Biometric BH95 | ||
Physical Parameters | Weight | 370g(including battery and wrist strap） |
Size | 170mm(H)x85mm(W)x23mm(D)±2 mm | |
Basic | CPU | Quad A53 1.3GHz quad-core |
Memory | 2GB+16GB | |
OS | Android 7.0 | |
Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 | |
Touch Screen | 5 point capacitive touch screen backlight | |
WWAN | WCDMA 850/1900/2100MHz，FDD-LTE B1/B2/B3/B4/B7/B17/B20 | |
Camera | 8.0MP Camera, Auto-focus with LED flash | |
WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |
Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 | |
GPS | GPS(embedded A-GPS), accuracy 5 m | |
Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh | |
Option modules | ||
RFID(Option) | Ultra highfrequeny | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz or 920~925MHz tag reading Circular antenna(2dBi) |
High frequency | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing | |
PSAM | Support two PSAM card | |
Low frequency | 125KHz/134.2KHz(FDX-B/HDX), ISO 11784 11785, reading range up to 2-10cm | |
2D Barcode(Option) | Module | Newland 3396 or Honeywell 6603 |
Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |
Fingerprint(Option) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification fingerprint |
Performance | FRR<0.008%, FAR<0.005% | |
Capacity | 1000 | |
PSAM SECURITY(Option) | Protocol | ISO 7816 |
Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |
Slot | 2 slots(maximum) | |
Development Environment | ||
SDK | HHW Software Development Kit | |
Language | Java | |
Environment | Android Studio or Eclipse | |
Accessories | ||
Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable |
Option | Carrying case; Cradle | |
Other features | ||
Environment | Operating temperature | (-20℃) - (50℃) |
Storage temperature | (-20℃) - (70℃) | |
Relative humidity | 5%RH to 95%RH(non-condensing) | |
ESD | ±15kv air discharge, ±8kv direct discharge | |
Application scene
Security check

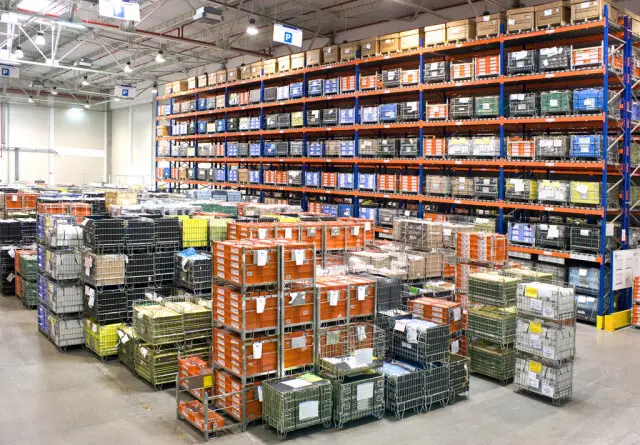

Warehouse management
logistics industry
Industry

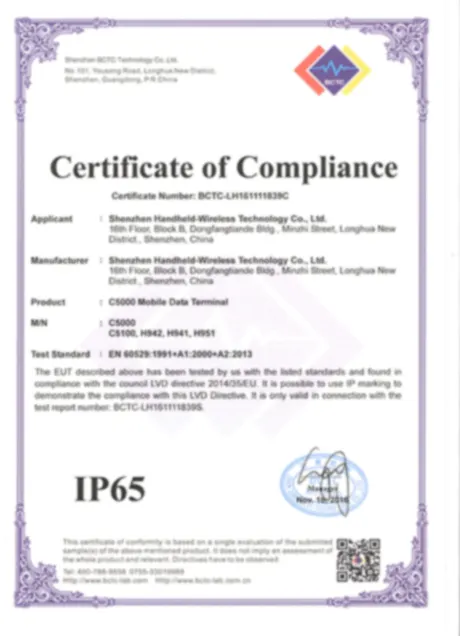

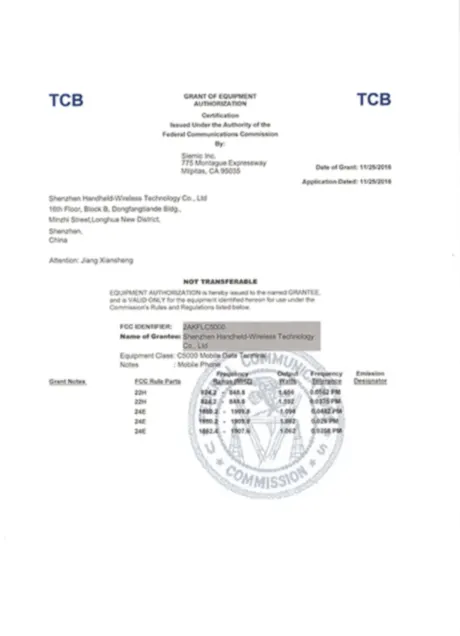

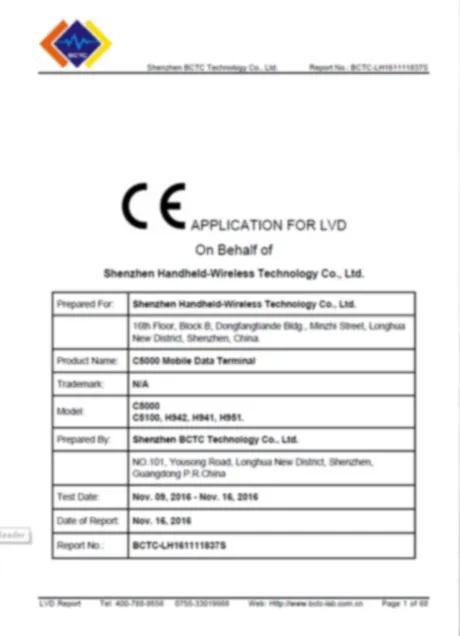

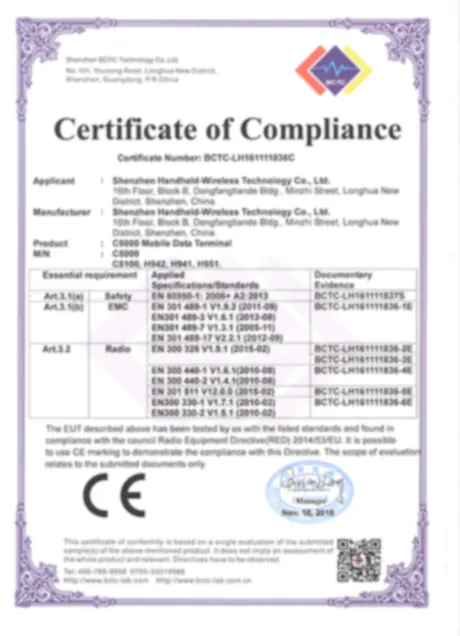

Product Certification
BH95
BH95
BH95
BH95
