Wholesale rfidnfc tough tablet BATL Brand inch windows ip67
-
v s
- Bright Alliance's experienced and professional technical personnel ensures excellent product design and development.
- Bright Alliance has a unique quality management system for production management. At the same time, our large after-sales service team can improve the quality of the products by investigating the opinions and feedback of customers.
- Bright Alliance always considers talent as one of the decisive factors for our sustainable development. Focusing on people and striving for common development are our corporate tenet. A talents team, created based on local, is the soul of the enterprise and also the motivation for rapid development.
- Since the establishment in 2010, Bright Alliance has always adhered to the development concept to be honest, professional, and innovative. During the development, we constantly pursue excellence and seek innovation. Now we become a modern enterprise with advanced technology and comprehensive equipment.
- Bright Alliance's handheld computer are sold well in the domestic market. They are also favored by many foreign customers.
1. BATL rugged tablet is made of high-quality materials selected from reliable and internationally-certified suppliers. Barcode scanner is integrated into the device to make it functional
2. A complete quality management system has been specially established to ensure the quality of this product. Some of its parts are supplied by famous brands such as Honeywell
3. BATL promises that we will check every detail from the material selection to package. Every step during the OEM & ODM service is standardized so as to perfectly meet the customer's needs
Product introduction

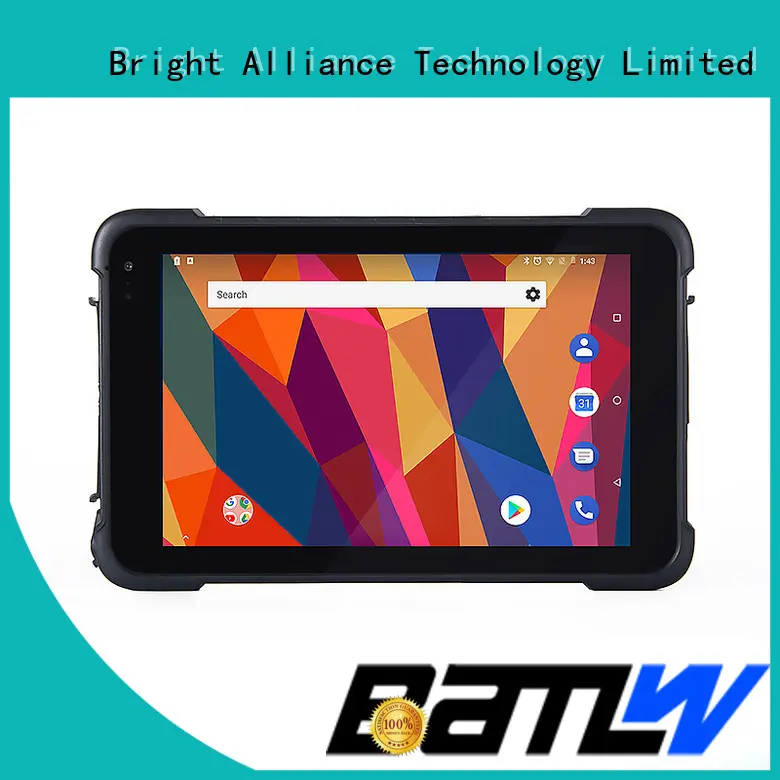

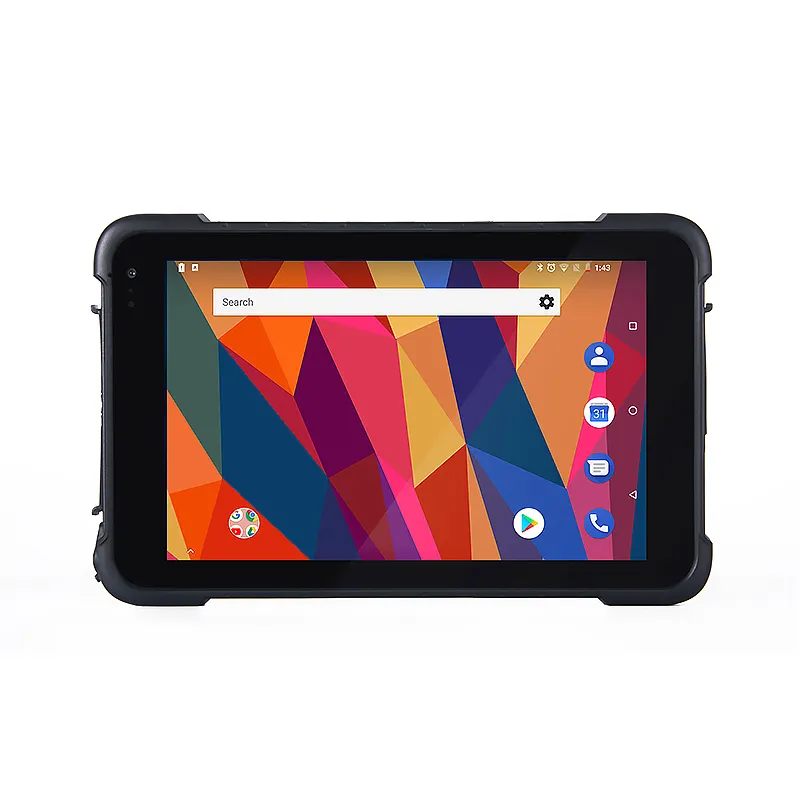

BT86 it is a 8.0 inch IP67 Rugged tablet with optio modules 1D/2D barcode scanner,we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and sealed completely to make it waterproof,and the model with Quad core CPU and Android 8.1 o.s,Dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with 2.0M front camera and 13.0M rear one,the most important with built in 8500mah big battery to make it continuously working 10-14 hours,
And there are HDMI,D.C,Micro USB,Type A etc ports,among them.the USB port it can support OTG and transfer into Ethernet port
And we also design handstrap to better hold the device,cradle for better charging and vehicle mount for better fixing and charging on the vehicle and customization stylus to better run the device
Now our customers they mainly use the devices in fleet management and warehouse management and some install their own Application to control special projects
The main features
◪ 8.0 inch IP67 1280*800 above 400 nits brightness display
◪ Corning Gorrila tempered glass and Double injection mould for better protection
◪ Quad core Android 8.1 o.s 2GB RAM and 32GB ROM
◪ Dual band WIFI,Support GPS and GLOANSS navigation
◪ Front 2.0M and rear 13.0M camera
◪ 8500mah big battery for long time working
◪ Option 1D/2D Barcode scanner
Product details
Product details
8.0 inch Android 8.1 rugged tablet 1D/2D Barcode scanner,cradle,vehilce mount,stylus,car charger all are available BT86 | ||
Product Outlook | ||
Type | Details | Standard Configuration |
Product Form | Type | Rugged Tablet |
Dimension | 225*143*19mm | |
Weight | Device unit: 0.558kg，Unit with giftbox and standard accessories:1330g，docking：290g | |
Device Color | black( bottom shell in black, front shell in black) | |
LCD | Screen Size | 8“ 16:10 800*1280 IPS 400 nits |
TP | Touch Panel | Multipoints Capacitive，G+G，Rigidity: above 7H-Anti-scratch，TP thickness：1.1mm，COF，support handwriting |
Camera | Front/rear | Front: 2.0MP with indicator light,Rear: 13.0MP |
Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 |
Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
Battery | Type | Build in Polymer li-ion battery,3.7V/8500mAh 15Hrs(default 50% volumn，default200 lumens brightness，play 1080P HD video) |
System Hardware Configuration | ||
Type | Details | Description |
CPU | Type | MTK 8735A,1.45GHZ |
GPU | Type | ARM ® Cortex-A53 |
RAM | DDR3L | 2GB |
ROM | Emmc | 32GB |
Sensors | Built-in | Light sensor,electronic compass,gyroscope,Gravity acceleration sensor |
Network Connections | ||
Type | Details | Descriptions |
WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance：10m |
2G/3G/4G | Built-in | GSM/WCDMA Quad band,TD-SCDMA（B34、B39） & TDD（B38、B39、B40、B41）& FDD（B1、B2、B3、B4、B5、B7、B8、B 17、B 20） |
NFC | Built-in | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
GPS | Built-in | MTK6625 4 in one,GPS+GLONASS |
1D/2D Barcode Scanner | Optional | MOTO 2707 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse,Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
Interface Configuration | ||
Type | Details | Descriptions |
TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
SIM slot | SIM card | SIM card x1 |
USB interface | data transmission | Android OTG x1 |
Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
DC Jack | Power | DC 5V 3A∮3.5mm Power connector x1 |
HDMI interface | Video Output | HDMI 1.4a Type C x1 |
Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
Power on | press key | power key x1 |
Volume + - | press key | power key x1,Volume + - x2 |
Accessories | ||
Type | Details | Description |
Standard | Standard | OTG cable/usb cable/Adaptor/handstrap |
Optional | Optional | cradle/vehicle mount/stylus/car charger |
Software Configuration | ||
Type | Details | Description |
Operation System | OS version | Android 8.1 |
Reliability | ||
Type | Details | Descriptions |
Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional） | |
Store Temperature | ’-30 °C to 70 °C | |
Humidity | Humidity: 95% Non-Condensing | |
Application scene
Security check

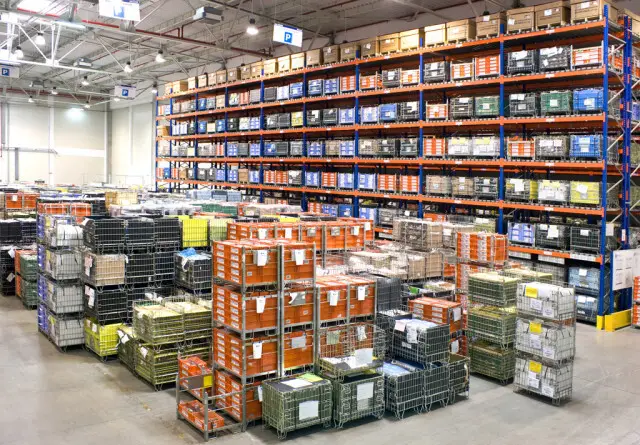

Warehouse management

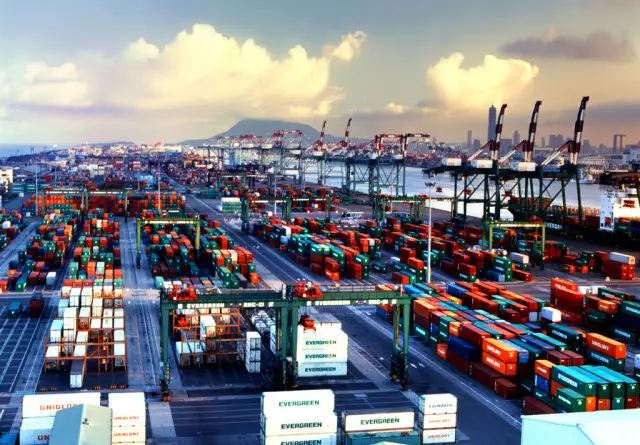

logistics industry
Industry
Product Certification
BT86
BT86
Company Features
1. Bright Alliance Technology Limited is a pioneer in the area of rugged tablet domestically.
2. BATL continues to use technology innovation to create value of rugged windows tablet for its customers.
3. Bright Alliance Technology Limited will shoulder corporate social responsibility, and dedicated to innovative, harmonious and green development. Call now!
