Article 137 of ATEX directive 99/92/EC sets out the responsibilities of employers concerning the use of equipment designed for explosive atmospheres:
Prevent the formation of explosive atmospheres,
Avoid the ignition of explosive atmospheres,
Mitigate the effects of explosions.
W888 Mobile Handheld Scanning Terminal
IP67 waterproof,Military quality,Fast scanning
W888 is equipped with the latest eight-core CPU, allowing you to work faster; it supports full Netcom, allowing you to switch between operators at any time.
It supports cradle charging and can charge the battery separately.
IP68 waterproof, MIL-STD-810G anti-drop and high and low temperature protection standards, so that you can use more at ease.

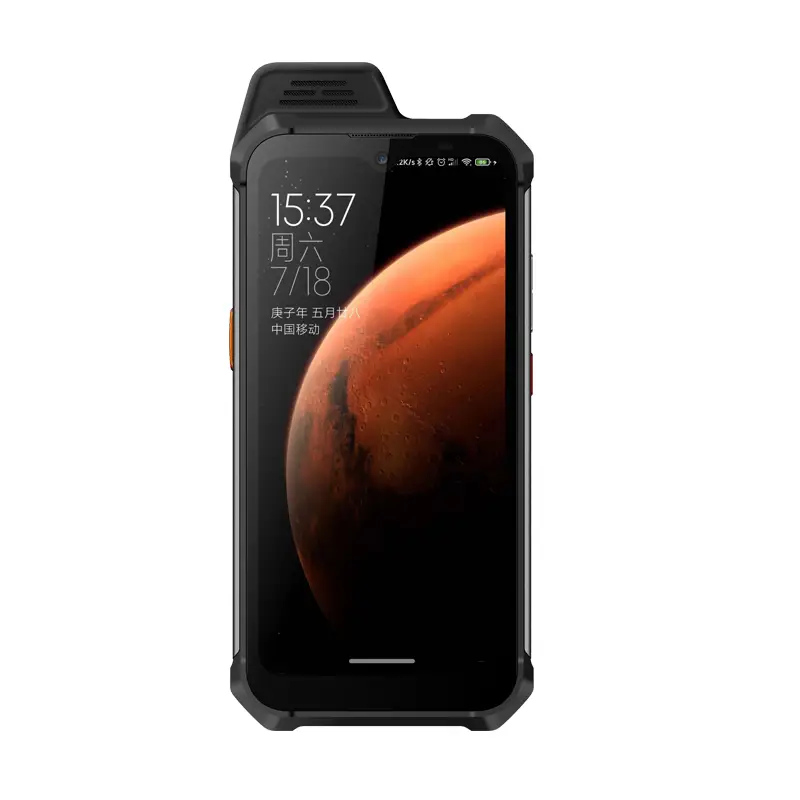

| 6.3 Inch intrinsically safe rugged smartphone with Atex W888 | |
Features 1.6.3 Inch IP68 rugged smartphone 2.With Atex explosion-protection 3.4GB+64GB 4.5000mah removable battery | |
| Project Info | Description |
| Model number | W888 |
| Android os | smart ruggedphone,Android 11 |
| Spec | |
| Appearance | Candy Bar Type |
| Dimension | 175*82*16mm |
| Weight | 326g |
| Languages | multi |
| Hardware Info | Description |
| MTK Chipset | MT6765 Octa core, 2.35GHz+1.7GHz |
| Screen | 6.3 inch 20:9 FHD IPS capacitive touch screen, 1080*2340px |
| Light | 450nits |
| Resolution | 1080*2340px |
| Touch panel | gorilla 4 HD |
| 2G Band | B2/B3/B5/B8 4G: FDD-LTE: |
| WCDMA | 3G: WCDMA B1/2/4/5/8; TD-SCDMA B34/39; CDMA BC0/BC1 |
| TDS | B34/B39 |
| TDD | B34/38/39/40/41 |
| FDD | B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B, |
| CDMA | BC0/BC1 |
| GNSS | GPS+BDS+GLONASS 3choose2 |
| Memory | |
| ROM | 4GB |
| RAM | 64GB ROM (128RGB ROM optional), support TF card up to 128GB maximally |
| Camera | |
| Front camera | 5MP |
| Back camera | 24MP + 2MP macro camera； |
| Data communication | |
| Bluetooth | Yes，5.0(MTK Four in one) |
| Wifi | IEEE 802.11a/ b/g/n/ac, support 2.4GHz/5GHz dual band wifi |
| NFC | Support, NXP557 and fast speed |
| FM | Yes |
| USB disk | Yes |
| Sensor | |
| G-Sensor | 3D Accelerometer |
| L-Sensor | Yes |
| Proximity sensor | Yes |
| Compass | Yes |
| Fingerprint Sensor, | Yes |
| Vibrator | Yes |
| keys | Power key, Volume +/-, PTT button |
| Speaker | 2W,on the front |
| Mic | Yes |
| Indicator light | RGB |
| Battery | |
| Capacity | Removable 3.8V/4400mAh battery, explosion-proof battery |
| Interface | |
| USB | Yes，TYPE-C USB |
| Memoriy Card | Micro-SD, |
| SIM card slot | Dual sim card slot |
| M6 | Optional |
| Features | |
| Wireless Radio | Support, need to plug in earphones |
| Fingerprint unlock | Yes |
| OTG | support mouse support keyboard |
| ACCESSORIES | |
| Charger | Yes, Same as USB port |
| battery | x1 |
| Usb cable | x1 |
| user manual | x1 |
| Docking station | optional |
| Handstrap | optional |
| RELIABILITY | |
| Waterproof | IP68 |
| shockproof | 1.5m |
| Explosion-protection | ATEX II 2G Ex ib IIC T4 Gb/II 2D Ex tb IIIC T120°C Db |
It is suitable for the application needs of diversified scenarios such as logistics and transportation, warehousing management, express delivery, retail and catering.
It is important to use ATEX-approved equipment to protect yourself from equipment-related explosions. This equipment must meet the technical requirements for the types of zone you wish to use it in. ATEX standards are regulated by European directives and specific equipment markings. ATEX stands for ATmosphère EXplosive (explosive atmosphere).
